Einzelheiten zum Produkt
Herkunftsort: China
Markenname: ZK
Modellnummer: SG830
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1 Stück
Preis: 85usd
Eingangsspannungsbereich: |
150–800 VDC |
Nennspannung Vmp: |
350 VDC (BUCK) |
Eingangsleistung: |
5-10kW |
Übertragungseffizienz: |
95% |
Maximale Spannung: |
800VDC |
Mindestspannung: |
150VDC |
Eingangsspannungsbereich: |
150–800 VDC |
Nennspannung Vmp: |
350 VDC (BUCK) |
Eingangsleistung: |
5-10kW |
Übertragungseffizienz: |
95% |
Maximale Spannung: |
800VDC |
Mindestspannung: |
150VDC |

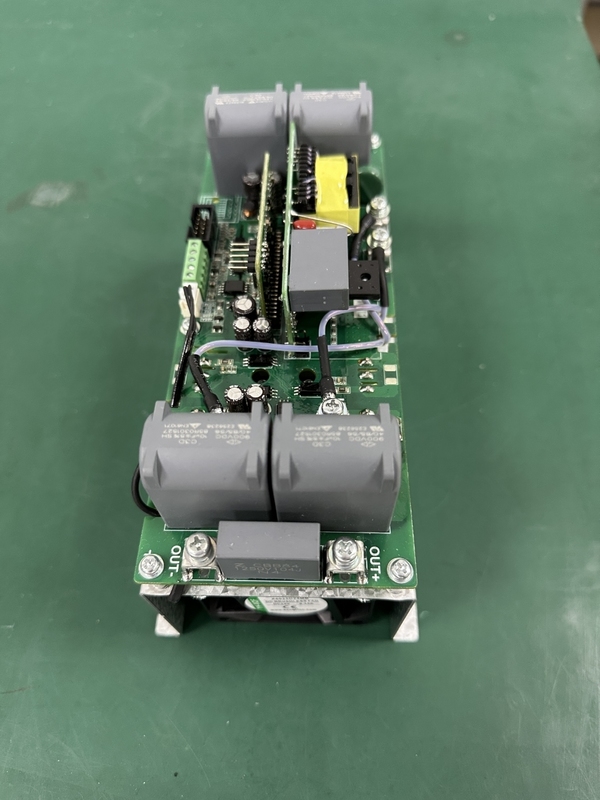

The SG830 module is a DC-DC power supply module that can be configured in either Boost or Buck mode:
It can be set for 220V mode or 380V mode, so it doesn't need to be bought separately, which can save costs.
It has the functions of limiting voltage and current (CV, CC) for DC power supply output.
The DC voltage of photovoltaic can be fed into the bus of the frequency converter through step-up or step-down methods to achieve mixed power supply of the frequency inverter's mains power and photovoltaic power, thereby achieving energy conservation of the mains power.
It is equipped with built-in photovoltaic MPPT function, and the tracking efficiency can reach 99.9%. Pluggable type keyboard, parameter Settings, the Modbus/RS485 communication function; To wear a wall installation.
PV+ and PV- are on the low-voltage side:
Out+ and Out- are on the high-voltage side:
Note:
